Inside elbow polish machine 90 degree bends PLC automatic polishing machine from Trancar Industries
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | Trancar Industries |
| إصدار الشهادات | CE/ISO |
| رقم الموديل | الطب الصيني التقليدي-NP |
| الحد الأدنى لكمية | 1 مجموعة |
| الأسعار | USD 9000-50000 Dollar per set |
| تفاصيل التغليف | تصميم صندوق من الخشب الرقائقي حسب الطلب |
| وقت التسليم | 40 يوم عمل |
| شروط الدفع | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على العرض | 20 مجموعات شهريا |
تفاصيل المنتج
| اسم المنتج | آلة تلميع الكوع الداخلي بزاوية 90 درجة آلة تلميع أوتوماتيكية PLC | البعد | 2100x1400x2000 ملم |
|---|---|---|---|
| وزن | 1300 كجم | لون | أزرق/أحمر/رمادي |
| الاستخدام | تلميع السطح الداخلي للكوع بعجلات الطحن | يمد | ODM و OEM |
| الجهد االكهربى | 380 فولت 400 فولت 415 فولت إلخ | ضمان | 18 شهر |
| حالة | جديد 100% | القدرة على العمل | 3/4 بوصة - 4 بوصة أو 4 بوصة - 8 بوصة |
منتوج وصف

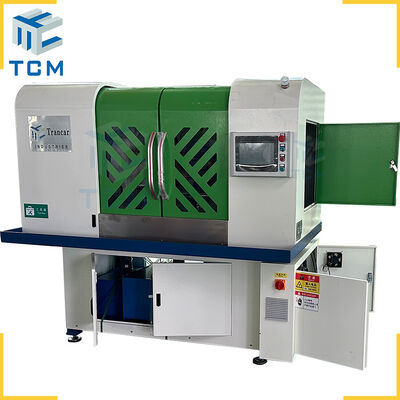

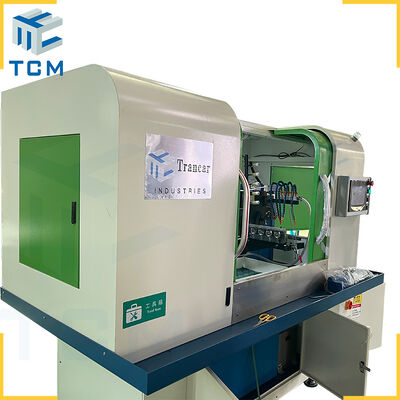

TCM-NP Inside elbow polish machine
Trancar Elbow Internal Mechanical polishing equipment is widely used widely used in the fields of food hygiene, biomedical grade, electronic clean grade stainless steel welded pipe equipment,high-purity pipe manufacturing production line equipment,UHP Piping system,SEMI & FPD etc.How to get right roughness internal surface of 90 degree elbows with Trancar elbow inside mechanical polishing equipment?Such as ASTM BPE steel 90 degree long elbows Ra0.2-08 um surface.

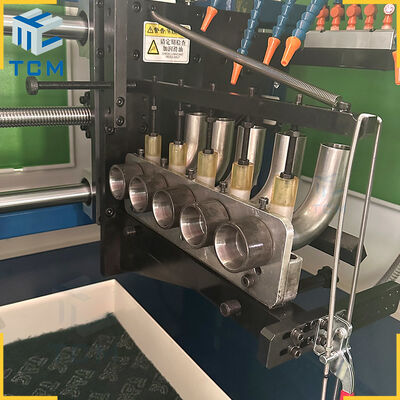

TCM-NP type mechanical automatic polishing machine is suitable for 1/2 inch-4 inch diameter 90 degree elbow bends internal surface grinding polishing.It's controlled via PLC full automatic system,with higher working efficiency,one person could control at least 3 sets machine,easy to operation.
TCM-NP Elbow internal automatic polishing machine applicable standards:ISO 3A, ASME-BPE,BA,EP,SMSDINS,long/short elbow pipe fittingsu-shaped bend pipetee pipe fittings.
Trancar Industries Elbow inside polishing machine Performance Characteristics:Internal grain surface roughness is veryuniform,quality/big progress and fixture rapid replacement of three,easy to learn,easy to operation.
TCM 90 degree bend interior automatic polishing machine Technology Principle:Mitsubishi PLC control of feed speed, polishing revolution is adjustable, 1/2-2"as the five products at the same time polishing,2.5" 3 "4" for the three products at the same time polishing.Sheet metal sealing safety protection,grinding oil filtration cycleuse,workshop without dust/dirt/oil dirties,conform to the ISO 14001 environmental management system.
#Sanitaryelbows,#90degreeelbowpolishingmachine,#bpeelbows #BPEpipefittings #elbow polishing machine #elbowinternalpolishingmachine #mechanicalpolishingmachine
Contact for more Inside elbow polish machine 90 degree bends PLC automatic polishing machine.
Automatic Elbow polishing Equipment Steel 90 degree bends polishing machine Main parameter:
|
SPECIFICATIONS FOR TCM-NP steel Elbow internal polishing machine |
|||
|
Available polishing elbow data |
Elbow Diameter |
3/4-4 /4-8 inch |
inch |
|
Degree |
90-180 |
degree |
|
|
Polishing precision |
Surface roughness(Ra) |
<= 0.2-0.8 |
μm |
|
Machine Weight |
/ |
1300 |
KG |
|
Outer Dimension (L x W x H) |
/ |
2100x1400x2000 |
mm |
|
Input Total Power |
/ |
18 |
KW |
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
||
|
Produce Efficiency |
/ |
180-200 |
Pieces/day |
|
Suitable Polishing Material |
Custom design grinding wheels |
||
Trancar Industries steel elbow bender automatic grinding equipment delivery and package:
